makeprojects.visual_studio.VS2003XML Class Reference

Visual Studio 2003-2008 XML formatter. More...

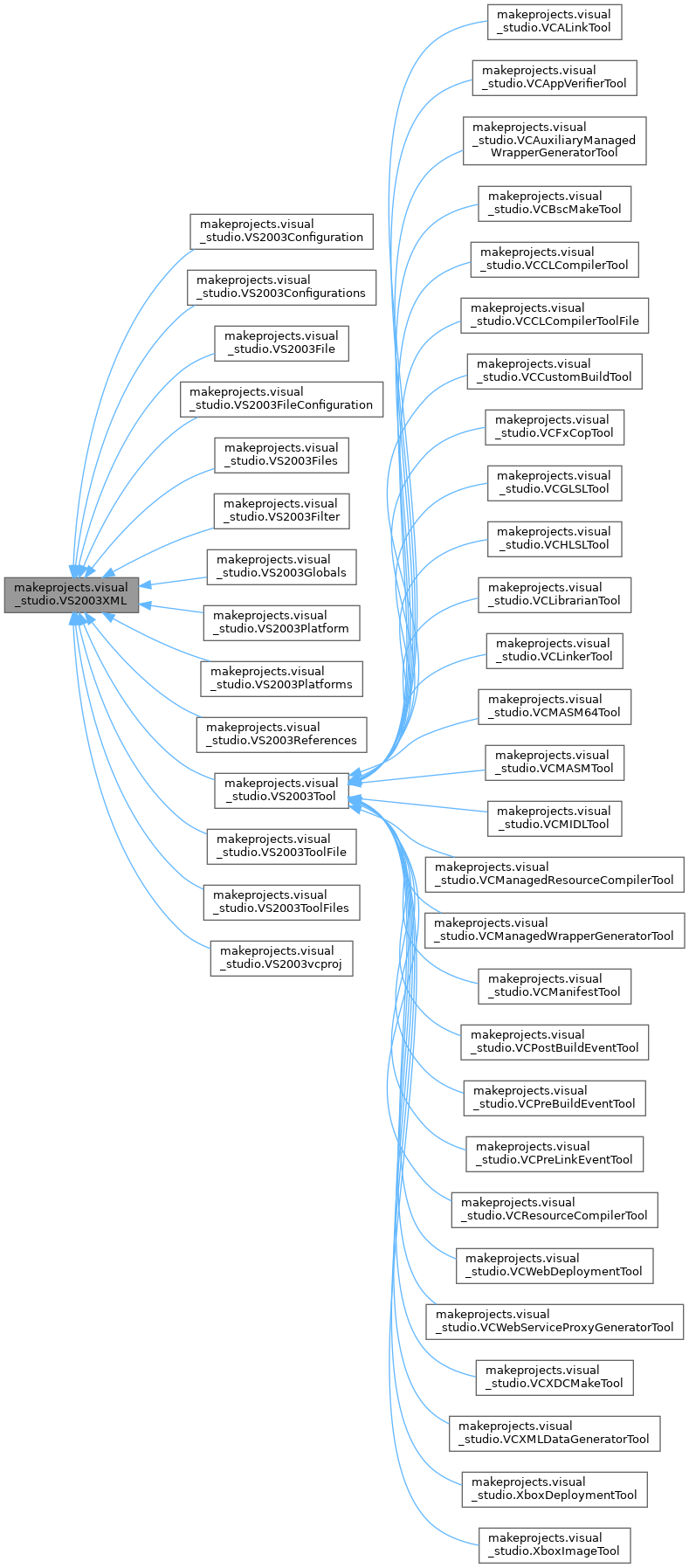

Inheritance diagram for makeprojects.visual_studio.VS2003XML:

Public Member Functions
	__init__ (self, name, attributes=None, force_pair=False)
	Set the defaults.
	add_attribute (self, attribute)
	Add an attribute object.
	add_attributes (self, attributes)
	Add a list of attribute objects.
	add_element (self, element)
	Add an element to this XML element.
	set_attribute (self, name, value)
	Change existing attribute.
	remove_attribute (self, name)
	Remove an attribute.
	reset_attribute (self, name)
	Reset an attribute to default.
	generate (self, line_list=None, indent=0, ide=None)
	Generate the text lines for this XML element.
	__repr__ (self)
	Convert the solution record into a human readable description.
	__str__ (self)
	Convert the solultion record into a human readable description.

Public Attributes
	name = name
	Name of this XML chunk.
	force_pair = force_pair
	Disable <foo/> syntax.
list	elements = []
	List of elements in this element.
list	attributes = []
	List of valid attributes and defaults.

Detailed Description

Visual Studio 2003-2008 XML formatter.

Output XML elements in the format of Visual Studio 2003-2008.

Visual Studio 2003-2008 only supports XML tags and attributes. There is no support for text between tags.

Theses are examples of XML fragments this class exports.

<Platforms>
    <Platform
        Name="Win32"/>
</Platforms>

<Tool
    Name="VCMIDLTool"/>

<-- force_pair disables support for "/>" closure -->
<File
    RelativePath=".\\source\\Win32Console.cpp">
</File>

Constructor & Destructor Documentation

__init__()

makeprojects.visual_studio.VS2003XML.__init__	(		self,
			name,
			attributes = None,
			force_pair = False )

Set the defaults.

Parameters

name	Name of the XML element
attributes	dict of attributes to use as defaults.
force_pair	If True, disable the use of /> XML suffix usage.

Member Function Documentation

__repr__()

makeprojects.visual_studio.VS2003XML.__repr__

(

self

)

Convert the solution record into a human readable description.

Returns

Human readable string or None if the solution is invalid

__str__()

makeprojects.visual_studio.VS2003XML.__str__

(

self

)

Convert the solultion record into a human readable description.

Returns

Human readable string or None if the solution is invalid

add_attribute()

makeprojects.visual_studio.VS2003XML.add_attribute	(		self,
			attribute )

Add an attribute object.

Append the passed attribute to the end of the attribute list for this XML element.

Parameters

attribute

A validator class instance

add_attributes()

makeprojects.visual_studio.VS2003XML.add_attributes	(		self,
			attributes )

Add a list of attribute objects.

Iterate over the list of attribute objects and append them to the end of the attribute list.

Parameters

attributes

list of attribute objects.

add_element()

makeprojects.visual_studio.VS2003XML.add_element	(		self,
			element )

Add an element to this XML element.

Parameters

element

VS2003XML object

generate()

makeprojects.visual_studio.VS2003XML.generate	(		self,
			line_list = None,
			indent = 0,
			ide = None )

Generate the text lines for this XML element.

There is a slight difference between Visual Studio 2003 and 2005/2008 on how tags are closed. The argument ide is used to flag with close format to use.

Parameters

line_list	list object to have text lines appended to
indent	number of tabs to insert (For recursion)
ide	IDE to target.

Returns

line_list with all lines appended to it.

Reimplemented in makeprojects.visual_studio.VS2003vcproj.

remove_attribute()

makeprojects.visual_studio.VS2003XML.remove_attribute	(		self,
			name )

Remove an attribute.

If the value is in the list, remove it.

Parameters

name	String of the entry to remove

Returns

True if found and removed, False if not present.

reset_attribute()

makeprojects.visual_studio.VS2003XML.reset_attribute	(		self,
			name )

Reset an attribute to default.

If the attribute is in the attribute_defaults list, set it to the default, which can include the attribute removal.

Parameters

name	String of the entry to reset

set_attribute()

makeprojects.visual_studio.VS2003XML.set_attribute	(		self,
			name,
			value )

Change existing attribute.

If the attribute was not found, it will throw.

Parameters

name	String of the entry to match
value	Value to substitute
